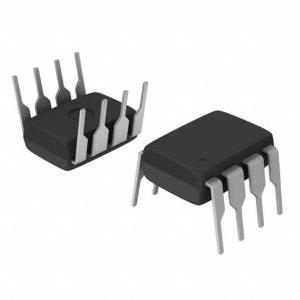

NCP1203P60G Electronic IC Components PWM Current Mode Controller

Brand Name : onsemi

Model Number : NCP1203P60G

Certification : new & original

Place of Origin : original factory

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

VCC, Drv : 16V

TJMAX : 150°C

TJ : - 40 to +125°C

Tstg : - 60 to +150°C

Contact Now

NCP1203P60G
PWM Current−Mode Controller for Universal Off−Line Supplies Featuring Standby and Short Circuit Protection


Features

• High−Voltage Startup Current Source
• Auto−Recovery Internal Output Short−Circuit Protection
• Extremely Low No−Load Standby Power
• Current−Mode with Adjustable Skip−Cycle Capability
• Internal Leading Edge Blanking
• 250 mA Peak Current Capability
• Internally Fixed Frequency at 40 kHz, 60 kHz and 100 kHz
• Direct Optocoupler Connection
• Undervoltage Lockout at 7.8 V Typical
• SPICE Models Available for TRANsient and AC Analysis

• Pin to Pin Compatible with NCP1200
• Pb−Free Packages are Available

Applications

• AC−DC Adapters for Notebooks, etc.
• Offline Battery Chargers
• Auxiliary Power Supplies (USB, Appliances, TVs, etc.)

MAXIMUM RATINGS

Rating Symbol Value Unit
Power Supply Voltage VCC, Drv 16 V
Power Supply Voltage on all other pins except Pin 5 (Drv), Pin 6 (VCC) and Pin 8 (HV) - −0.3 to 10 V
Maximum Current into all pins except Pin 6 (VCC) and Pin 8 (HV) when 10 V ESD diodes are activated - 5.0 mA
Thermal Resistance, Junction−to−Air, PDIP−8 Version
Thermal Resistance, Junction−to−Air, SOIC Version		 RJA
RJA		 100
178		 °C/W
°C/W
Maximum Junction Temperature TJMAX 150 °C
Temperature Shutdown - 170 °C
Hysteresis in Shutdown - 30 °C
Operating Temperature Range TJ −40 to +125 °C
Storage Temperature Range Tstg −60 to +150 °C
ESD Capability, HBM Model, All pins except Pin 6 (VCC) and Pin 8 (HV) - 2.0 kV
ESD Capability, Machine Model - 200 V
Maximum Voltage on Pin 6 (VCC) and Pin 8 (HV) Decoupled to Ground with 10 F - 450 V
